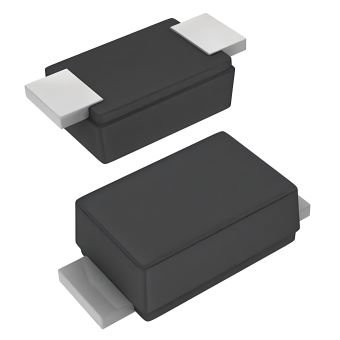

TVS Diodes P4SMFT9.0A
P4SMFT9.0A · TVS Diodes.
- Package
- SOD-123FL
- Polarity
- Uni
- VRWM
- 9
- VBR(Min)
- 10
- VBR(Max)
- 11.1
- VC
- 15.4
Request a quote
Part: P4SMFT9.0AWe will follow up by email after submission.
Product Introduction
P4SMFT9.0A · TVS Diodes.
Verified key specifications include Polarity Uni, VBR(Min) 10, VBR(Max) 11.1, VC 15.4.
Complete technical data for this model can be checked in the verified datasheet provided here.
Provide the operating conditions or sample needs here for further selection and application support.
Specifications
| Package | SOD-123FL |
|---|---|
| Polarity | Uni |
| VRWM | 9 |
| VBR(Min) | 10 |
| VBR(Max) | 11.1 |
| VC | 15.4 |
| IR(µA) | 10 |
| IPP(A) | 26 |
| PPP(W) | 400 |
